Alternatives to Press Fits: Comparing Shaft-to-Hub Connection Methods
When engineers search for alternatives to press fits, they’re usually dealing with tight tolerance costs, inconsistent torque performance, shaft damage, excessive assembly force, or poor serviceability. The question isn’t just how to replace a press fit, it’s how to transmit torque between shaft and hub in a way that balances manufacturability, durability, and cost.
What Are Alternatives to Press Fits?
Alternatives to press fits include splines, keyways, tolerance rings, adhesives, set screws, and clamp hubs. These shaft-to-hub connection methods transmit torque through positive engagement, friction, clamping force, or engineered compliance, each with different tradeoffs in torque capacity, tolerance requirements, machining complexity, and serviceability.
How Torque Is Transmitted Between Shaft and Hub
Most shaft-to-hub connection methods fall into three categories:
- Friction-Based Connections
This includes press fits, tolerance rings, adhesives.
- Torque is transmitted through surface friction
- Sensitive to interference and surface condition
- Simpler geometry, tighter tolerance dependency
- Positive Engagement
This includes splines and keyways.
- Torque is transmitted through mechanical interlock
- High torque capacity
- Higher machining complexity
- Clamping-Based
This includes set screws and clamp hubs.
- Torque is transmitted through compressive force
- Easier assembly
- May introduce localized stress
Understanding which category best fits your torque, cost, and production constraints is often more important than choosing a specific part number.
FURTHER READING: For a deeper look at press-fit tolerance fundamentals, this comprehensive technical resource on press fit tolerances may prove useful.
Why Engineers Look for Alternatives to Press Fits
Press fits are simple and compact, but they come with tradeoffs:
- Tight tolerance requirements increase machining cost and scrap risk
- Tolerance stack-up causes inconsistent interference and torque capacity
- High insertion force can cause shaft scoring or galling
- Thin-walled hubs may distort
- Disassembly can be destructive
- Rigid connections transmit vibration and NVH (noise, vibration, and harshness)
In motor-driven systems or lightweight assemblies, these issues often drive the search for a better solution.
FURTHER READING: For more on where press fits struggle in dynamic systems, see our recent post on why press fits fail in rotating assemblies.
Comparing Shaft-to-Hub Connection Methods
Below is a high-level comparison to guide early design decisions:
| Method | Torque Capacity | Tolerance Requirements | Machining Complexity | Assembly Force | Serviceability | Shaft Damage Risk | Vibration Damping | Relative Cost Impact |
| Press Fit | Moderate–High | Tight | Low–Moderate | High | Low | Moderate–High | Low | Moderate |
| Splines | High | Moderate | High | Low | High | Low | Low | High |
| Keyways | High | Moderate | Moderate–High | Low | High | Moderate | Low | Moderate–High |
| Adhesives | Moderate | Moderate | Low | Low | Low | Low | Moderate | Low–Moderate |
| Set Screws | Low–Moderate | Moderate | Low | Low | High | High (localized) | Low | Low |
| Clamp Hubs | Moderate | Moderate | Moderate | Low | High | Low | Low | Moderate |
| Tolerance Rings | Moderate–High | Wider | Low | Moderate | Moderate–High | Low | Moderate–High | Low–Moderate |
Where Each Method Makes Sense
Use press fits when:
- Tolerances can be tightly controlled
- Assembly is not serviceable
- High insertion force is acceptable
Use splines and keyways when:
- Very high torque must be transmitted
- Machining cost is justified
- Long-term durability outweighs simplicity
Use adhesives and set screws when:
- Loads are moderate
- Simplified machining is required
- Environmental conditions are controlled

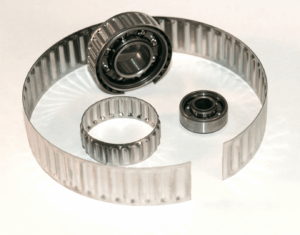

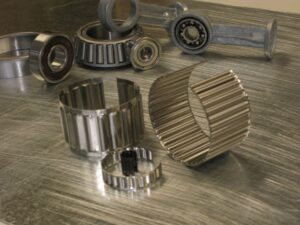

Use tolerance rings when you need a controlled radial spring force that:
- Allows wider manufacturing tolerances
- Reduces machining requirements
- Dampens vibration
- Protects shafts from scoring
- Helps accommodate thermal expansion mismatch
If you’re unfamiliar with the mechanics behind them, start with What is a Tolerance Ring? And review application examples on our site.
Best Way to Connect Shaft to Gear? It Depends.
When evaluating the best way to connect shaft to gear, consider:
- Required torque capacity
- Production volume
- Assembly automation requirements
- Serviceability needs
- Vibration and NVH concerns
- Material pairing and thermal expansion
- Cost-down or tolerance-relaxation goals
There is no universal “best” shaft-to-hub connection method. The right choice depends on which constraints dominate your application.
Tolerance rings are particularly effective when:
- Torque is significant but not spline-level extreme
- Tolerance stack-up is difficult to control
- Vibration damping is beneficial
- Lightweight or thin-walled components are involved
Selecting the Right Press Fit Alternative Early Reduces Risk
Redesigning a shaft-to-hub interface late in development is expensive. Early evaluation of shaft-to-hub connection methods can:
- Reduce scrap and machining cost
- Improve production consistency
- Simplify automation
- Improve NVH performance
- Lower lifecycle risk
If you’re weighing alternatives to press fits and want input on torque targets, tolerances, materials, or production scale, tell us about your project. We’d love to weigh in.
Frequently Asked Questions
What is the best alternative to a press fit?
The best alternative to a press fit depends on torque, tolerance, and serviceability requirements. Splines and keyways offer high torque capacity, while tolerance rings provide compliance, vibration damping, and relaxed tolerances. There is no universal best alternative. The optimal choice depends on application constraints.
Are tolerance rings as strong as splines?
No. Tolerance rings are not typically as strong as splines for extreme torque transmission, but tolerance rings can handle moderate to high torque while offering advantages in vibration damping, shaft protection, and reduced machining complexity.
Do press fits damage shafts?
Yes, press fits can damage shafts when insertion force is high or interference is excessive. Press fits may cause scoring, galling, or stress concentrations, particularly during disassembly or in thin-walled hubs.
When should you use a keyway instead of a press fit?
You should use a keyway instead of a press fit when very high torque capacity and positive mechanical engagement are required, and when increased machining complexity and cost are acceptable.
Can tolerance rings handle high torque applications?
Yes, tolerance rings can handle high torque applications within defined limits. While not a replacement for heavy-duty splines in extreme loads, tolerance rings perform well in many motor-driven systems where moderate-to-high torque and vibration damping are required.
What is the most cost-effective shaft-to-hub connection?
The most cost-effective shaft-to-hub connection depends on production scale and machining constraints. Press fits are simple but require tight tolerances. Tolerance rings often reduce machining requirements and scrap risk, improving total system cost in many applications.
