Selecting Tolerance Ring Materials: A Practical Guide for Engineers
When selecting tolerance ring materials, factors such as chemical exposure, temperature, machinability, and cost need to be considered. Certain metals and alloys are better suited for particular environmental conditions and design constraints. Selecting proper material is critical for optimum tolerance ring performance and design success throughout the thermal range.
The material choice in a tolerance ring is based on anticipated service temperature ranges, corrosion exposure, chemical compatibility, load type, mating materials, and dynamic conditions. From there, the tolerance ring’s configuration is further defined in its wave geometry, which determines spring rates, radial capacity, and torque behavior.
The selection process starts with knowing the design constraints upfront, such as maximum and minimum temperature limits, corrosion and chemical exposures, radial, axial, and torque loads.
For most applications, 301 stainless steel is the right starting point. It’s compatible with most chemicals, able to endure moderate oven temperatures, and readily available and cost effective. But understanding why it’s the default material and what might make another material more suitable is important for increasing the probability of design success.

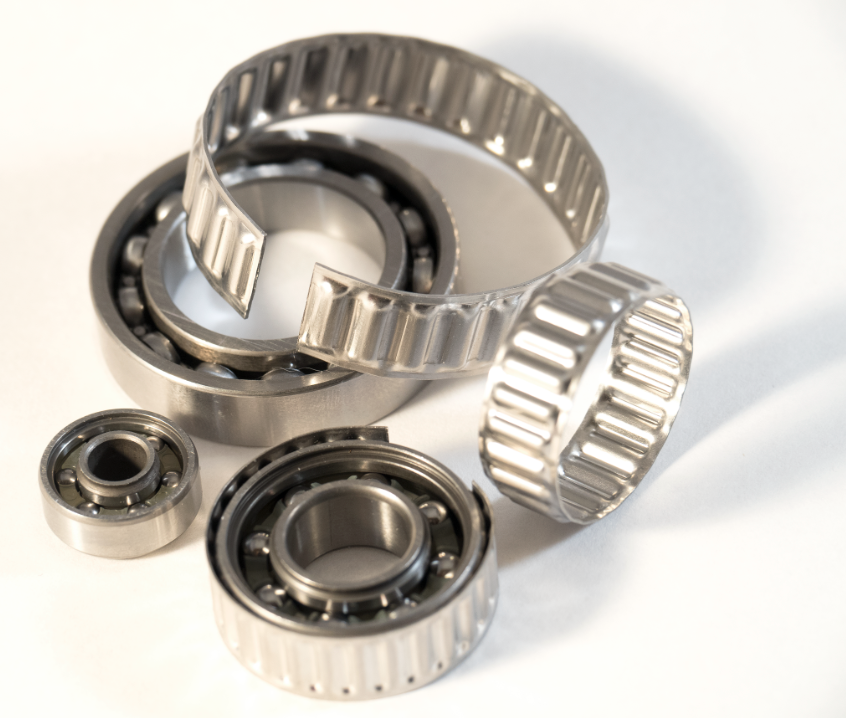

Start with the Functional Demands of the Interface
To select the appropriate material, engineers need to understand:
- The components being assembled
- The mating materials on both sides of the interface
- Expected dynamic loads or vibrations
- Operating temperature range
- Whether the environment includes moisture, salt, chemicals, or washdown exposure
Comprehending these variables determines how to integrate the priorities of spring rate, corrosion prevention, thermal stability, and long-term holding consistency.
One of the most common failure drivers is thermal expansion mismatch between mating materials, especially in aluminum housings or mixed-metal assemblies. Mating or component materials with different coefficients of thermal expansion will expand and contract at different rates.
Why 301 Stainless Steel Is the Default Starting Point
For most standard applications, 301 stainless steel offers the best overall balance. It combines:
- Strong spring properties
- Stable elastic recovery
- Good corrosion resistance
- Broad commercial availability
- Reliable performance up to approximately 450°F
- Cost efficacy
This is why 301 stainless remains the most common starting point for tolerance ring materials in shaft-to-hub, shaft-to-bearing, and bearing-to-housing interfaces.
Its temper flexibility is especially useful in spring applications. Depending on temper and processing under ASTM A666, yield strengths can vary significantly, allowing the material to support a wide range of wave geometries and radial force targets.
When Carbon Steel Is the Better Choice
There are applications where carbon steel may be the better choice, although it comes with certain design risks. For a more detailed comparison, refer to carbon steel vs stainless steel.
Given the same configuration (i.e., wave geometry, width, diameter), tolerance rings made of hardened carbon steel (AISI 1074 or 1075) typically offer about 15% to 25% greater radial capacity and torque hold than 301 stainless steel.
Advantages:
- Higher spring rate
- Greater radial capacity
- Stronger push-out resistance
Disadvantages:
- Cannot endure temperatures above 250°F
- Minimal resistance to chemicals or corrosion
- Requires post-production processing to induce hardened properties
- Post-production processing is not always consistent
The tradeoff is reduced corrosion and oxidation resistance and a narrower thermal operating window. In other words, carbon steel wins on mechanical force density, but loses flexibility once temperatures or environments become more aggressive. In some situations, the cost of hardened carbon rings may be more than the cost of 301 stainless steel rings.
When 316 / 316L Stainless Steel Makes More Sense
If the interface lives in moisture, salt, washdown, or chemical exposure, 316/316L stainless steel often becomes the corrosion-first choice. Compared with 301 stainless steel, due to its softness, 316 sacrifices some spring performance in exchange for:
- Stronger chloride resistance
- Better long-term corrosion stability
- Improved suitability for food, marine, and chemical equipment
The engineering tradeoff is straightforward. Use 301 when spring behavior is the priority. Use 316 when corrosion resistance dominates, load requirements remain moderate and the components have similar coefficients of thermal expansion.
When Exotic Alloys Are Worth the Complexity
Most applications never need tolerance rings made of exotic alloys. But when temperature, corrosion, or media exposure push outside conventional limits of 301 stainless steel, alloys such as Hastelloy C-276 and Monel K-500 become necessary.
These materials support edge-case environments involving:
- Temperatures from –100°F to 900°F
- Aggressive chemical exposure
- Marine environments
- Highly corrosive process systems
The tradeoff is higher material cost but with the assurance that the spring-like properties of the tolerance ring will not be lost at higher temperatures.
These are usually best treated as custom engineering decisions, not catalog substitutions. For specialty requirements, USA Tolerance Ring’s specialty ring capabilities are the right starting point.
| Comparison Table: Tolerance Ring Materials at a Glance | ||||
| Material | Max Temp | Spring Rate | Corrosion Resistance | Best-Fit Application |
| 301 Stainless Steel | ~450°F | High | Good | Best default for most mechanical applications |
| Hardened Carbon Steel | ~250°F | Very High | Low | High radial force in dry controlled environments |
| 316 / 316L Stainless | ~450°F | Moderate | Excellent | Washdown, marine, chemical exposure |
| Hastelloy C-276 | ~900°F | Moderate | Exceptional | Chemical processing, aggressive media |
| Monel K-500 | ~600°F | High | Excellent | Marine, aerospace, corrosive edge cases |
When It Makes Sense to Validate Material Selection Early
Most applications will land comfortably utilizing 301 stainless steel. But once special conditions, temperature extremes, or unusual corrosion exposure comes into play, proper material selection becomes much more critical to assure functionality and design success.
In summary, proper material selection is based on the expected minimum and maximum service temperatures and anticipated chemical exposure.
In addition to temperature, the wave geometry selection is based on:
- The mating component materials
- Dynamic loading conditions
- The diametral gap and interface stiffness
- Production volume and manufacturability goals
When encountering temperatures above 450°F, interfacing mating components of different coefficients of thermal expansion rates and/or radial loads are above catalog radial capacity values, a specialty material or custom geometry should be considered earlier in the design cycle.
The submission process does not require a finished drawing or exact dimensions, but knowledge of the design constraints will enable a proper technical analysis. Even a basic understanding of the shaft-to-hub or bearing-to-housing interface, the problem being solved, and the operating environment is usually enough to begin narrowing the right material family.
If your team is evaluating tolerance ring materials for a demanding interface, it may help to start the conversation early through USA Tolerance Rings’ application review request form.
Frequently Asked Questions
What is the best material for a tolerance ring?
The best all-round material for a tolerance ring in most applications is 301 stainless steel. It offers a good balance of spring properties, corrosion resistance, and stable performance across a wide range of applications. However, the most suitable material for a tolerance ring really depends on the intended application and variables like operating temperatures, spring load requirements, corrosion risk, and more. So, it’s important to select the materials based on the intended operating application and environment above all else.
Can tolerance rings be used in high-temperature applications?
Yes, tolerance rings can be used in high-temperature applications. Standard 301 stainless steel performs reliably to about 450°F, while exotic alloys such as Monel K-500 and Hastelloy C-276 can endure temperatures up to 600°F and 900°F, respectively.
What is the difference between 301 and 316 stainless steel tolerance rings?
The difference between 301 and 316 stainless steel tolerance rings is that 301 prioritizes spring performance and elastic recovery, while 316 prioritizes corrosion resistance in washdown, marine, and chemical environments. Tolerance rings made of 316 stainless steel are very soft and their hardness is measured on the Rockwell B scale range.
What tolerance ring material should I use with an aluminum housing?
The best tolerance ring material for interfacing with aluminum often depends on thermal expansion mismatch and corrosion exposure. However, 301 stainless steel is typically the best starting point and most common alloy used between ball bearings and aluminum housings.
Is carbon steel better than stainless steel for tolerance rings?
Carbon steel can be better than stainless steel for tolerance rings when maximum spring rate, torque hold, and strength are required within a limited space. However, carbon steel tolerance rings are not suitable for humid, moist, or corrosive environments and are not able to endure temperatures above 250°F. Depending on production requirements, carbon steel tolerance rings may be more costly than 301 stainless steel.
SELECTION CHECKLIST
Questions to Answer Before Choosing a Tolerance Ring Material
Before finalizing tolerance ring materials, engineers should answer:
- What is being assembled (shaft-to-hub, shaft-to-bearing, bearing-to-housing, other)?
- What problem is being solved (retention, NVH, slip torque, alignment)?
- What is the inner component material?
- What is the outer component material?
- What is the diametral gap and can it be changed?
- What is the operating temperature range?
- What are the anticipated radial and axial loads?
- Is this prototype, low volume, or full production?
These answers typically narrow to the right material family quickly.
